High-Voltage Platform: Featuring a 51.2V high-voltage design, it is compatible with mainstream high-voltage energy storage and backup power systems, enabling efficient energy transfer and simpler system integration.
High Capacity & Long Endurance: Equipped with a 100Ah high-capacity cell assembly delivering 5.12kWh of effective energy, it supports extended power supply to meet medium-to-high power load demands.

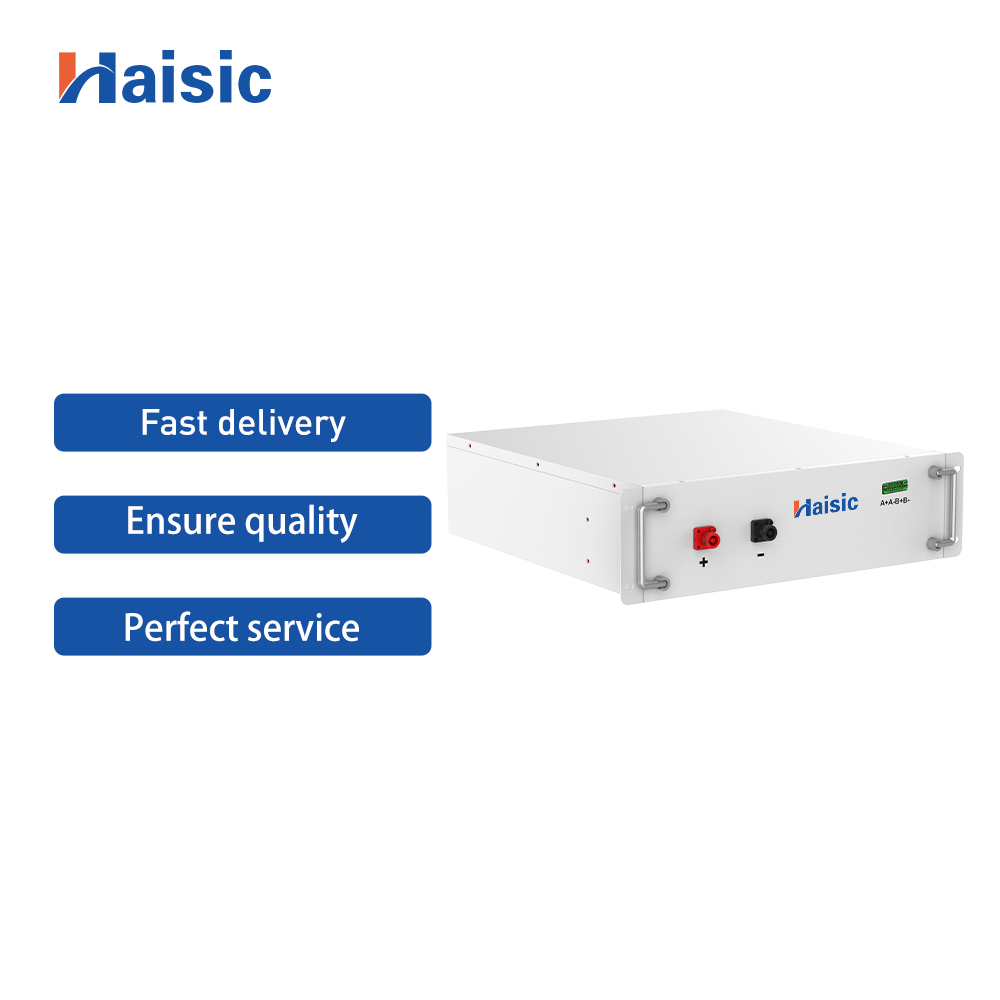

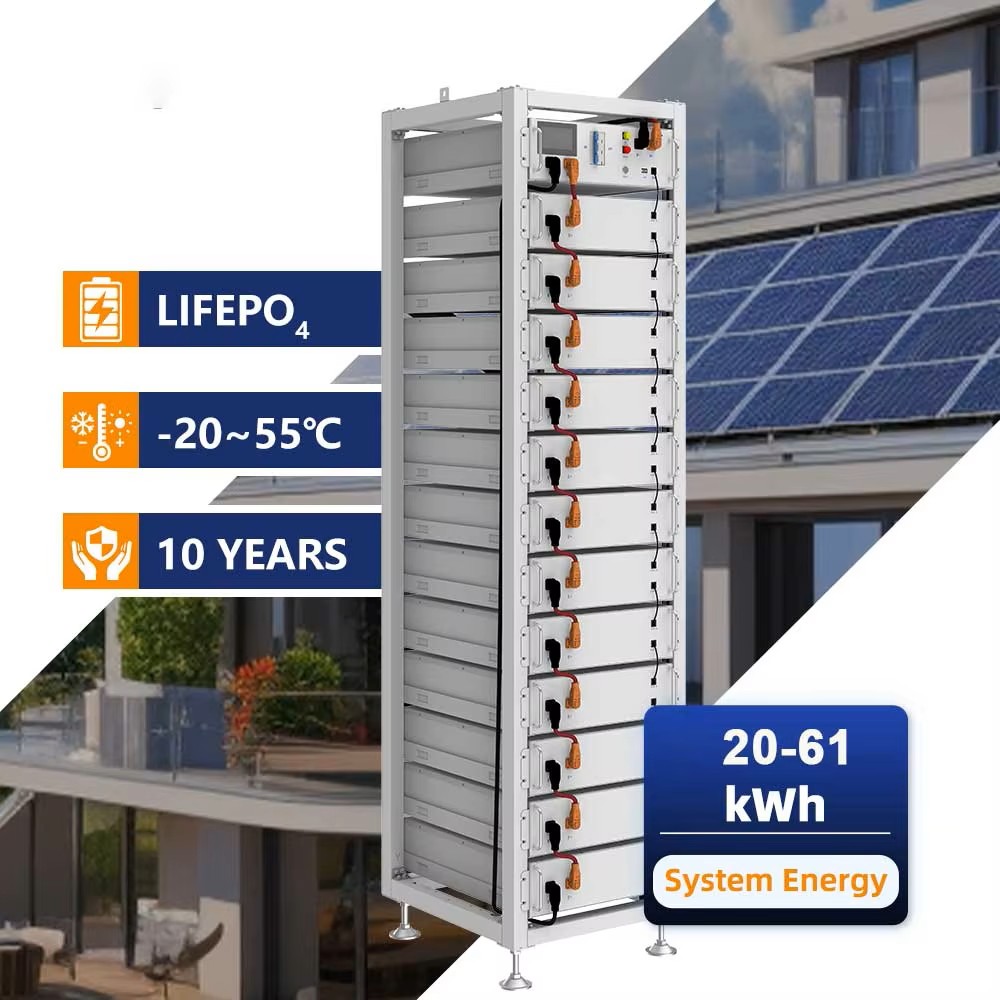

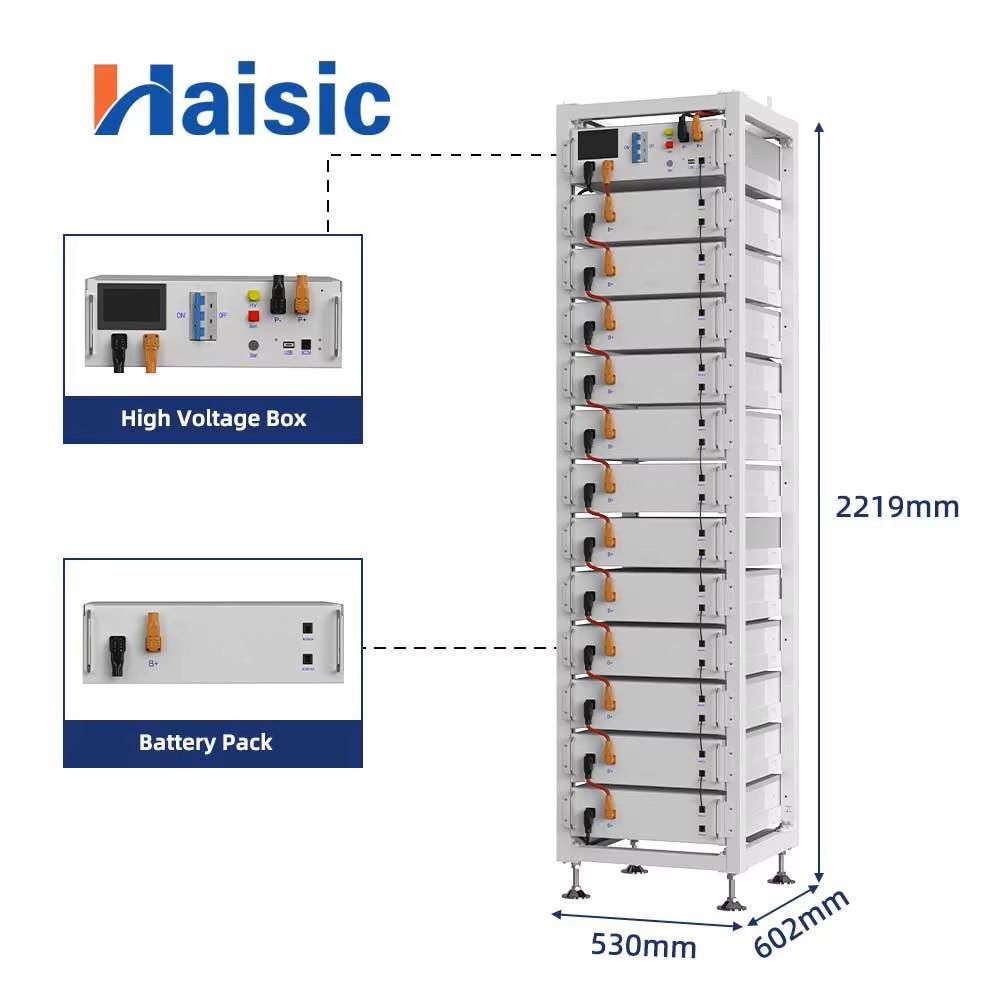

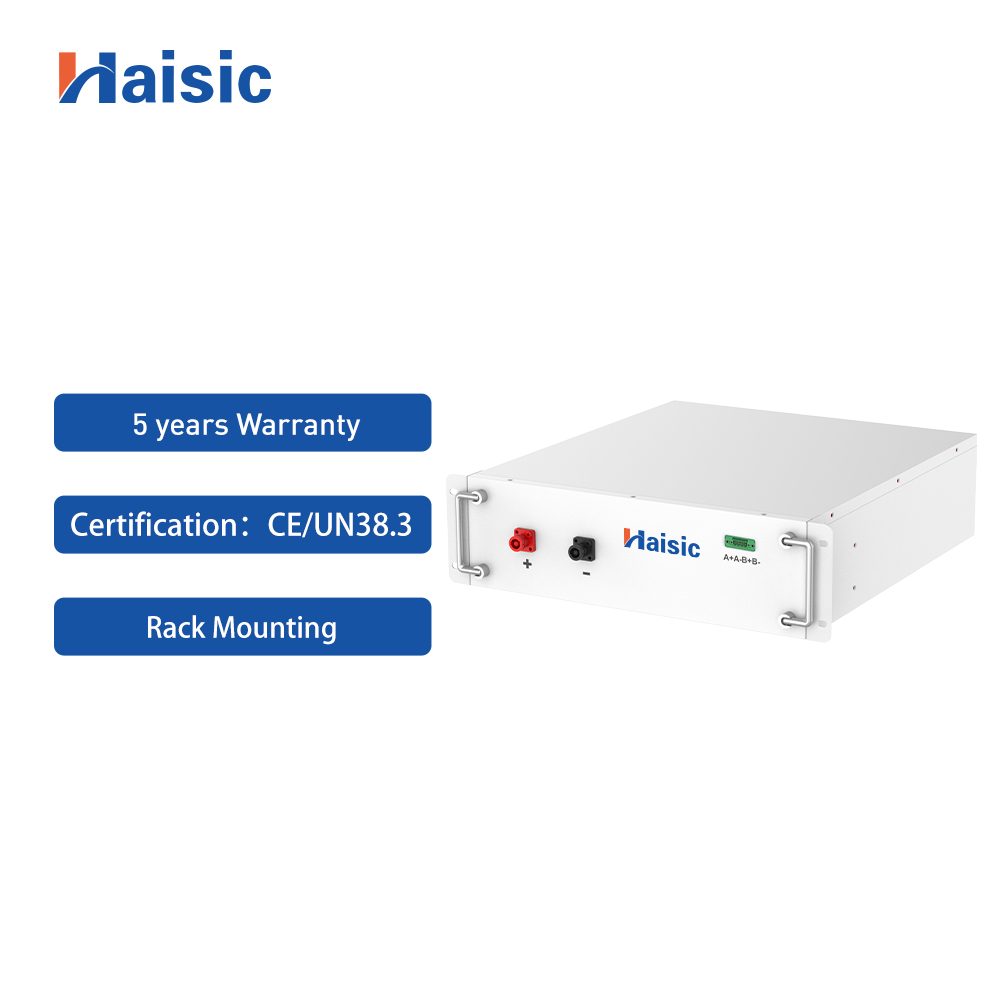

Rack-mounted energy storage high-voltage battery
The HS-GS5000WHV rack high-voltage system is a scalable commercial-grade haisic battery, engineered for medium and large-scale haisic energy storage projects. This modular Haisic lithium battery adopts premium-grade haisic LiFePO4 battery cells, a reliable lifepo4 battery built to meet strict industrial energy demands. Developed under the robust haisic power product ecosystem, it serves as a high-capacity solar battery for commercial PV stations, functioning as a flexible rack-mounted haisic solar battery. Businesses can stack multiple modules to expand capacity freely, building stable, grid-friendly haisic solar power systems for commercial buildings, industrial parks and microgrid applications.
Each standard module delivers 5.12kWh energy at 51.2V with 100Ah capacity, supporting flexible stacking from 4 up to 12 modules to adjust system voltage between 204.8V and 614.4V. The system supports a nominal charge/discharge current of 50A and peak discharge current of 125A for 2 minutes, with a recommended 90% depth of discharge to maximize available energy. Designed for rack installation, this lifepo4 battery integrates CAN2.0 and RS485 communication ports for seamless connection with hybrid inverters. Its wide working temperature range ensures stable operation for outdoor and indoor commercial solar projects, adapting perfectly to diverse commercial energy storage configurations.
Cell Chemistry | LiFePO4 | |||
Module Energy(kWh) | 5.12 | |||
Module Nominal Voltage (V) | 51.2 | |||
Module Capacity(Ah) | 100 | |||
Battery Module Qtyin series.(Optional) | 4 (Min) | 8（Standard US Cluster) | 12（Standard US Cluster) | |
System Nominal Voltage (V) | 204.8 | 409.6 | 614.4 | |
SystemOperating Voltage(V) | 180~233.6 | 332.8~467.2 | 499.2~700 | |
System Energy(kWh) | 20.48 | 40.96 | 61.44 | |
System Usable Energy (kWh) | 18.432 | 36.86 | 55.29 | |
Charge/Discharge2 Current (A) | Recommend | 50 | ||
Nominal | 100 | |||
Peak Discharge (2 mins,25°C) | 125 | |||
Working Temperature(°C) | Charge:0~55/Discharge:-20~55 | |||
Status Indicator | Yellow: Battery HighVoltage Power OnRed:Battery System Alarm | |||
Communication Port | CAN2.0/RS485 | |||
Humidity | 5~85%RH | |||
Altitude | ≤2000m | |||
IP Rating of Enclosure | IP20 | |||
Dimension(W/D/H,mm) | 589*590*1640 | 589*590*2240 | ||
Weight Approximate(kg) | 258 | 434 | 628 | |
Installation Location | Rack Mounting | |||
Storage Temperature(°C) | 0~35 | |||
Recommend Depth of Discharge | 90% | |||
Cycle Life | 25±2°C,0.5C/0.5C,EOL70%≥6000 | |||
Warranty | 5years | |||
Certification | CE/UN38.3 | |||
Product Advantages
♦Longer Cycle Life :the number of cycles reaches 6000+ cycles ，Working temperature range is from -25°C to 60°C, with excellent discharge performance and cycle life.
♦less Environmental Pollution：with non-toxic materials: iron, graphite, and copper,The whole module is non-toxic, non-polluting and environmentally friendly.
♦Safe And Reliable :Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
♦High discharge efficiency：Battery Efficiency >98.10%
♦Flexible Configuration：Multiple battery modules can be in parallel for expanding capacity and power.
♦low noise：<40dB
Company Profile
Founded in 2011, Shenzhen Haisic Technology Co., Ltd. is a national high-tech enterprise dedicated to the research, development, and production of energy storage products such as LiFePO4 battery packs, commercial& industrial energy storage residential energy storage, portable power station/solar generator, solar inverter, lift truck battery, RVAlandscape bus/golf cart battery and other OEM/ODM battery in China.
Deeply engaged in this field for more than 12 years, Haisic Technology has accuimulated profound experience in R&D, innovation, quality control and management. Our products are used in home energy storage, industrial energy storage, commercial energy storage,power communication, medical electronics, security communications, transportation and logistics, new energy power, smart home and other related fields.
We have owned our own production base covering more than 14000m located in Dapeng district of Shenzhen with ISO9001, ISO14001, IS045001 and Amfori BSCI, and our products are with CE, FCC, TUV-UL2054, CQC,RoHs, PSE,MSDS, UN38.3 certificates. We've already provided safe, stable, environmentallyfriendly, high-quality products and professional OEM/ODM services to customers in more than 80 countries and regions.
Safety and long service cycles are foundational to this industrial haisic LiFePO4 battery. The intelligent built-in BMS monitors cell voltage, temperature and current in real time, delivering comprehensive protection against overcharge, over-discharge, overheating and short-circuit risks. With a cycle life reaching over 6000 cycles under standard test conditions, this Haisic lithium battery offers exceptional long-term durability. It holds CE and UN38.3 certifications, features visual status alarm indicators, and supports convenient centralized management, making it a trustworthy core component for scalable haisic energy storage deployments worldwide.

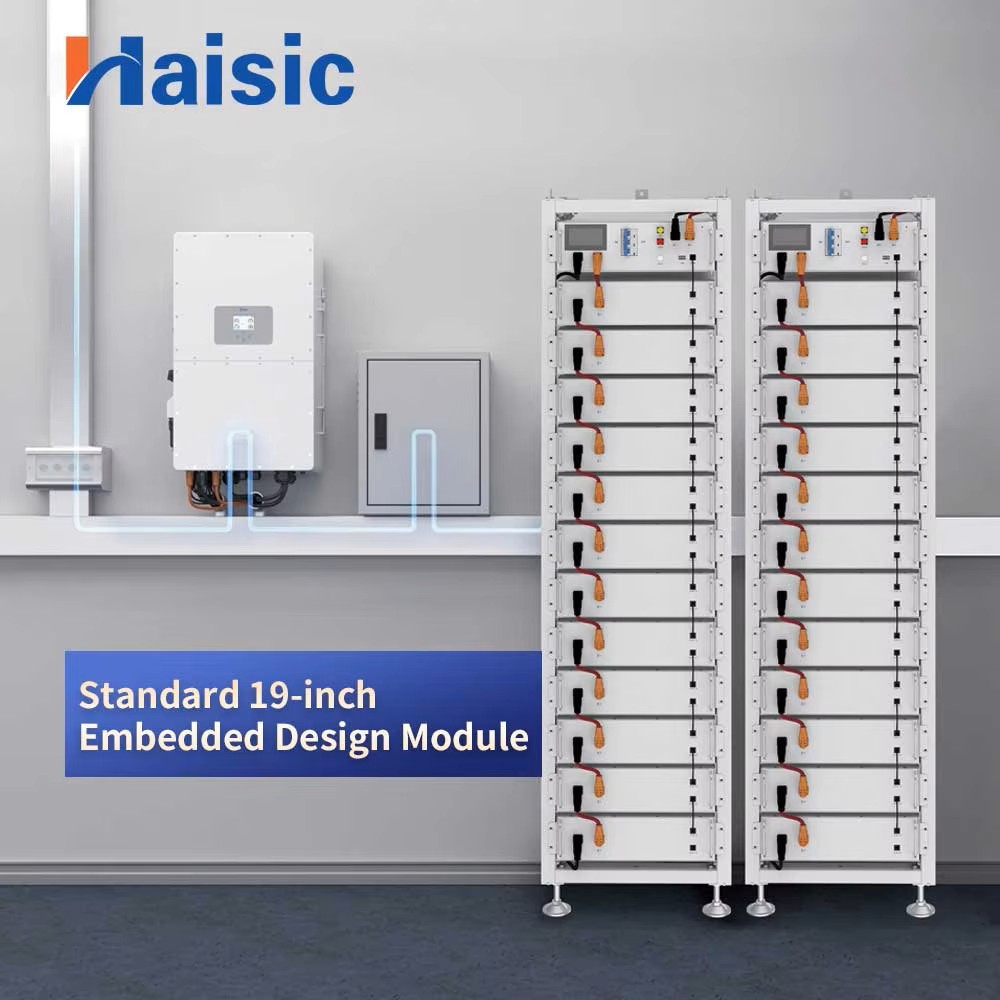

This rack-mounted high voltage haisic solar battery is an ideal solution for commercial peak shaving, backup power, off-grid microgrids and large rooftop solar systems. The modular design simplifies transport, installation and later capacity expansion, avoiding redundant investment for growing energy demands. By pairing this scalable haisic battery with solar arrays, operators can store surplus solar energy, reduce expensive peak electricity charges and strengthen power supply reliability. Leverage professional haisic power technology to build high-efficiency commercial energy stations and unlock sustainable, low-carbon haisic solar power for long-term business operation.
FAQ
1.What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.
2. What is a lithium battery used for?
A: Lithium battery is used for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreationalvehicle power, golf cart, reliable and light-weight marine, solar power storage, solar house, small processing factory, surveillance or alarm systems in remote locations.
3.Are your batteries safe?
A: Our batteries are safe. All Zwayn batteries use the safest and most stable components, including a LiFePO4 cathode and abuilt-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken everyprecaution to mitigate these risks in all of our batteries.
4.How do I choose the correct lithium deep cycle battery for my application?
A: In most standard 12, 24, or 48 volt systems, the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate/
Pouch/Primary battery cell). The voltage of this type of battery is very similar to an AGM and will work great with readily
available system components for your RV, boat, off-grid power system, solar house(TV, refrigerator, washing machine, air
conditioner, water heater, microwave oven, induction cooker, dishwasher, printer, computer),Telecommunication Tower, hybrid &off-grid solar energy system applications.
5.Can it be series or parallel for use?
A: Yes sir, it can support max. 15 in parallel connection for use, Max 150kwh storage box.
6.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which iscompatible?
A:Yes sir, our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt, Solax,Solis, Sungrow, Sofar, Voltronic, Sorotec, Studer, etc.
