HAISIC High Efficiency and Energy Saving Green and Environmentally Friendly 12.8V 280Ah 3584Wh Home Solar Energy System

Professional Energy Storage, Safe and Efficient — HS-LD12280 Provides a Reliable and Stable Power Solution

The HS-LD12280 is a high-capacity energy storage battery featuring advanced lithium iron phosphate (LiFePO₄) technology, offering a voltage of 12.8V and a capacity of 280Ah. It combines high safety, long lifespan, and exceptional performance, making it an ideal choice for various energy storage systems and power applications.

Product Highlights
High Safety Performance: Utilizes a lithium iron phosphate chemical system with excellent thermal stability, completely eliminating the risk of fire or explosion

Extended Cycle Life: 6,000 cycles (80% DOD), with a service life of up to 8–10 years

Intelligent Management System: Integrated high-precision BMS with multiple protection functions (overcharge/overdischarge/short circuit/temperature protection)

Exceptional Environmental Adaptability: Operates in a wide temperature range of -20°C to 60°C, suitable for various harsh environments

Plug-and-Play: Modular design supports parallel expansion, scalable up to 15 parallel modules

Typical Applications
✓ Solar/wind energy storage systems
✓ Off-grid power supply for RVs/yachts
✓ Backup power for communication base stations
✓ Electric vehicle power systems
✓ Industrial equipment energy storage solutions

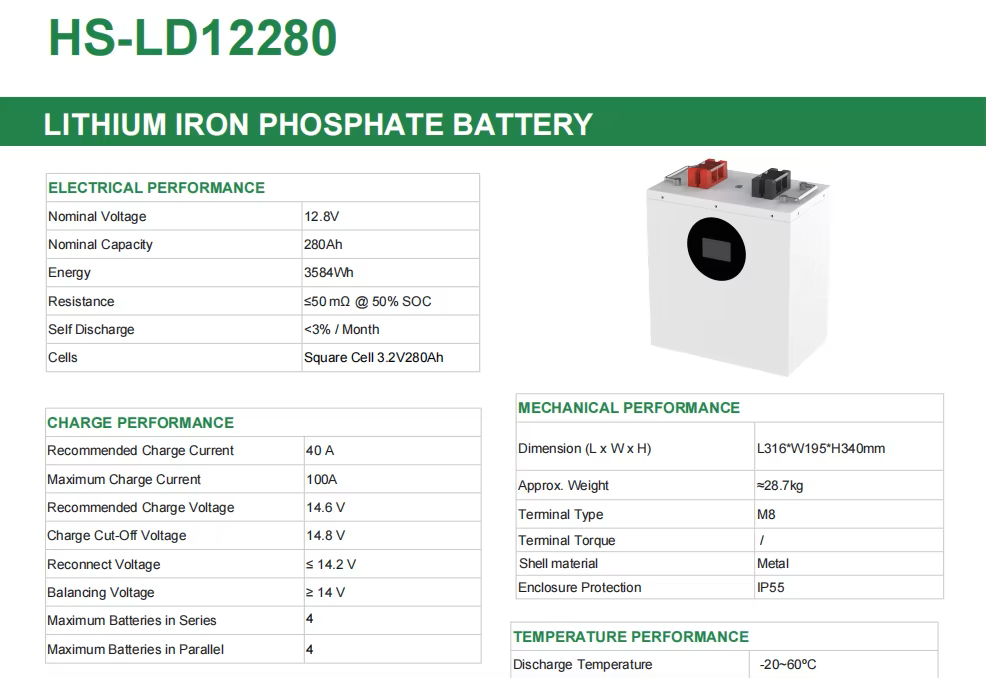

Specifications

Nominal voltage: 12.8V

Nominal capacity: 280Ah

Energy density: 3.584kWh

Charging voltage: 14.2-14.6V

Discharge cutoff voltage: 10V

Operating Temperature: -20°C to 60°C

Cycle Life: ≥6,000 cycles

Quality Assurance: Certified to CE, UN38.3, RoHS, and other standards.

Inquiry Basket

Product Code：

HS-LD12280

OEM：

Refuse

Sample：

Refuse

Payment：

PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other

Place of Origin：

China

Shipping：

Sea freight · Land freight

Supply Ability：

10000 piece per Month

Product Details

Rated Capacity

280Ah

Rated Energy

3584Wh

Recommended Charge Current

40A

Maximum Charge Current

100A

Recommended Charge Voltage

14.6V

Continuous Discharge Current

100A

Maximum contiuous Discharge Cu

200A

Discharge Cut-Off Voltage

10V

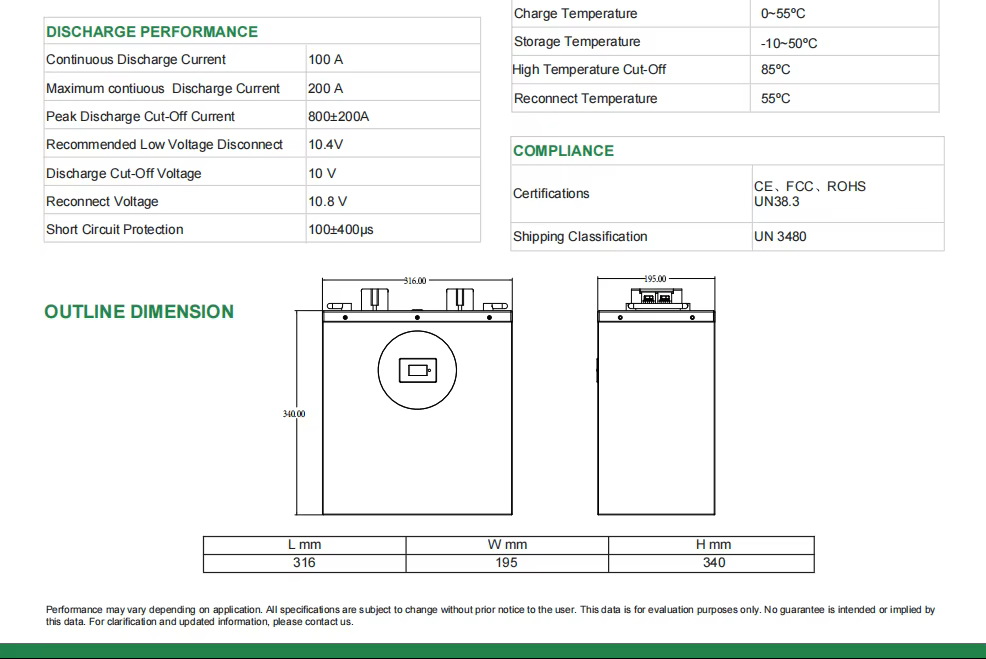

Dimension

L316*W195*H340mm

Weight

≈28.7kg

Terminal Type

Cycle Life

＞6000 (0.5C@ 25℃，80% DOD)

Certificate

CE,FCC,RoHs,MSDS,UN38.3

                                          Germany/US/Poland warehouse Stock available!!!
 --pick up from warehouse directly

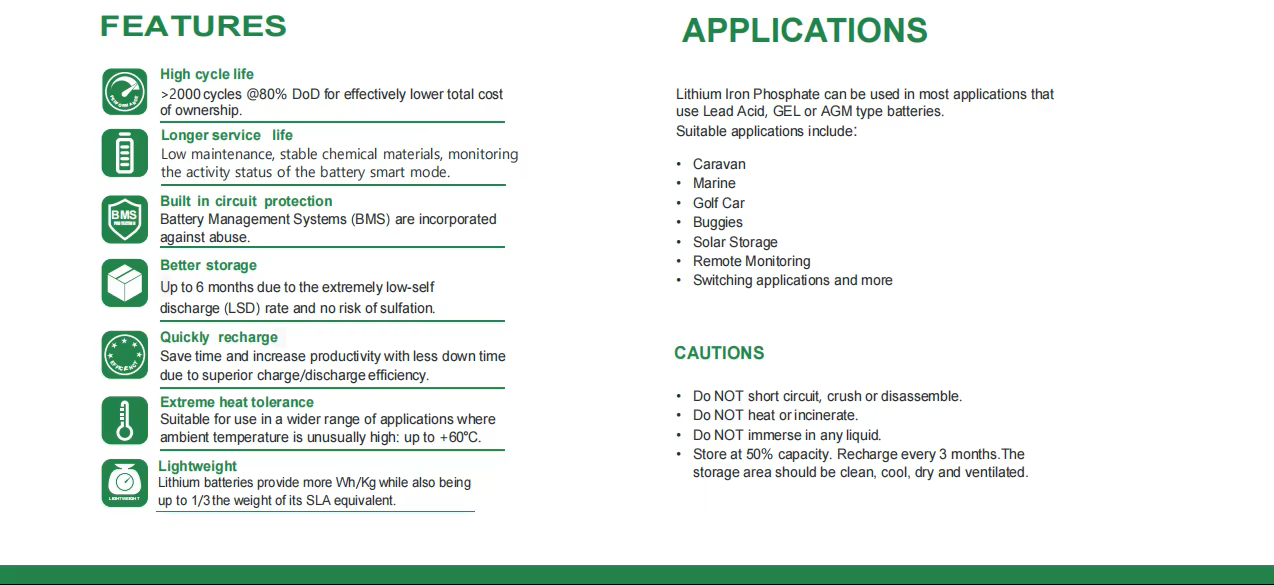

 Product Features

Company Profile

Founded in 2011, Shenzhen Haisic Technology Co., Ltd. is a national high-tech enterprise dedicated to the research, development, and production of energy storage products such as LiFePO4 battery packs, commercial& industrial energy storage residential energy storage, portable power station/solar generator, solar inverter, lift truck battery, RVAlandscape bus/golf cart battery and other OEM/ODM battery in China.
Deeply engaged in this field for more than 12 years, Haisic Technology has accuimulated profound experience in R&D, innovation, quality control and management. Our products are used in home energy storage, industrial energy storage, commercial energy storage,power communication, medical electronics, security communications, transportation and logistics, new energy power, smart home and other related fields.

We have owned our own production base covering more than 14000m located in Dapeng district of Shenzhen with ISO9001, ISO14001, IS045001 and Amfori BSCI, and our products are with CE, FCC, TUV-UL2054, CQC,RoHs, PSE,MSDS, UN38.3 certificates. We've already provided safe, stable, environmentallyfriendly, high-quality products and professional OEM/ODM services to customers in more than 80 countries and regions.
FAQ
1.What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.

2. What is a lithium battery used for?
A: Lithium battery is used for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreationalvehicle power, golf cart, reliable and light-weight marine, solar power storage, solar house, small processing factory, surveillance or alarm systems in remote locations.

3.Are your batteries safe?
A: Our batteries are safe. All Zwayn batteries use the safest and most stable components, including a LiFePO4 cathode and abuilt-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken everyprecaution to mitigate these risks in all of our batteries.

4.How do I choose the correct lithium deep cycle battery for my application?
A: In most standard 12, 24, or 48 volt systems, the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate/
Pouch/Primary battery cell). The voltage of this type of battery is very similar to an AGM and will work great with readily
available system components for your RV, boat, off-grid power system, solar house(TV, refrigerator, washing machine, air
conditioner, water heater, microwave oven, induction cooker, dishwasher, printer, computer),Telecommunication Tower, hybrid &off-grid solar energy system applications.

5.Can it be series or parallel for use?
A: Yes sir, it can support max. 15 in parallel connection for use, Max 150kwh storage box.

6.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which iscompatible?
A:Yes sir, our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt, Solax,Solis, Sungrow, Sofar, Voltronic, Sorotec, Studer, etc.
