Haisic Solar Battery Lithium Ion Battery Pylon 5kwh Rack-mounted Energy Storage Battery

HS-GS5000W Rack-Mounted Low-Voltage Battery — Efficient Energy Storage, Stable Power Supply

The HS-GS5000W is a high-performance rack-mounted low-voltage battery designed for residential energy storage, commercial and industrial backup power, and off-grid systems. Utilizing high-energy-density lithium-ion battery technology, it supports efficient charge/discharge cycles, providing a stable and safe power solution to meet diverse energy needs.

Core Advantages
✔ High-Capacity Efficient Energy Storage — 5000Wh high-energy reserve capacity, easily handling prolonged power outages or peak power demands.
✔ Intelligent Management System — Built-in BMS protection, real-time monitoring of voltage, current, and temperature to ensure safe operation.

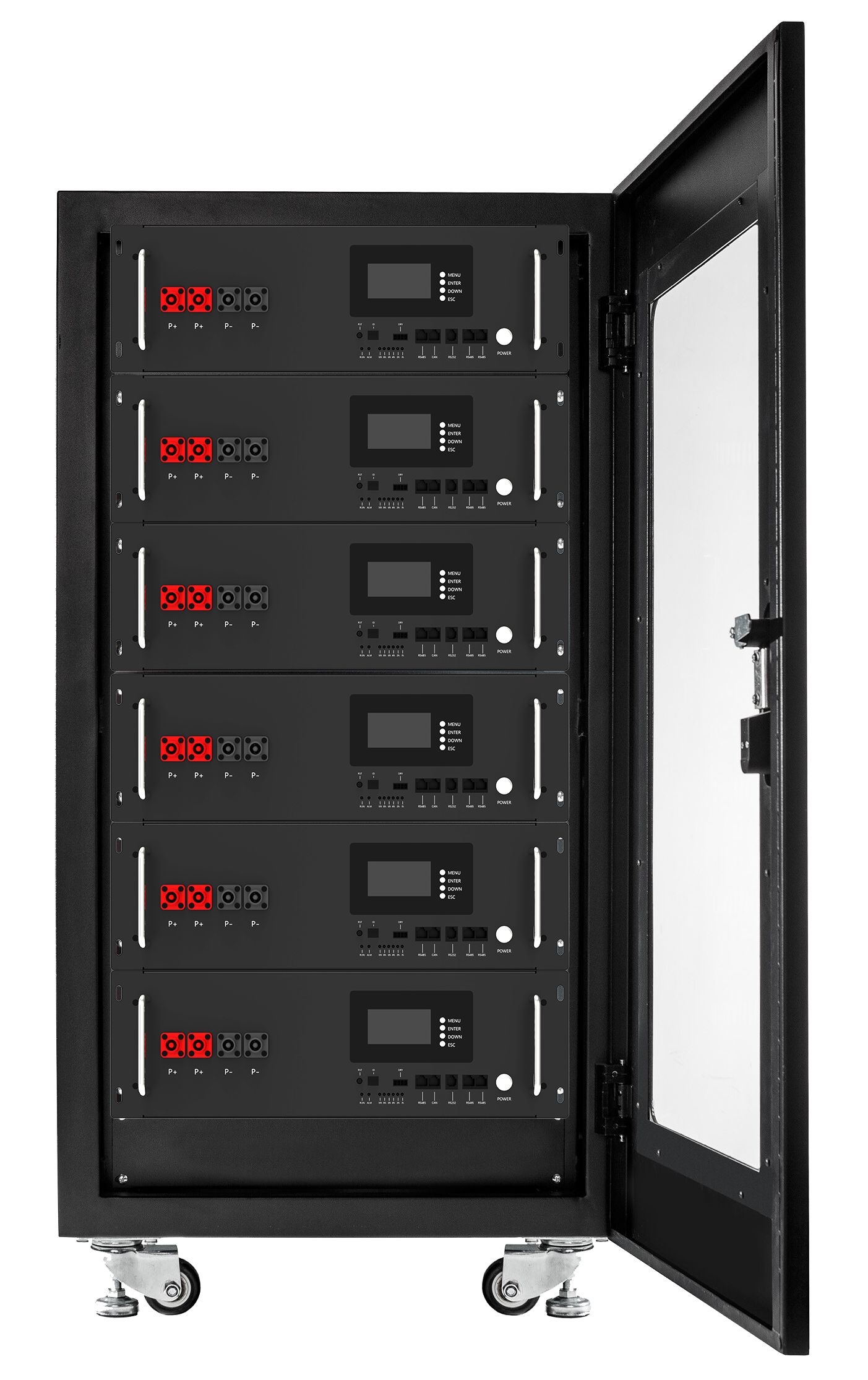

✔ Modular Rack Design — Standard rack installation, space-saving, supports parallel expansion of multiple units, and flexible adaptation to different scenarios.
✔ Wide temperature range adaptability — Stable operation from -20°C to 60°C, suitable for extreme environments, ensuring reliable performance.
✔ Green and energy-efficient — Compatible with solar systems, maximizing the use of renewable energy and reducing electricity costs.

Application Scenarios

Home energy storage: Pair with a photovoltaic system to achieve self-generation and self-consumption, enhancing energy independence.

Commercial Backup: Provides uninterrupted power for critical loads such as servers and medical equipment.

Off-Grid Power Supply: An ideal energy solution for environments without grid access, such as camping and remote base stations.

Choose the HS-GS5000W to empower your energy future!

Inquiry Basket

Product Code：

HS-GS5000W

OEM：

Refuse

Sample：

Refuse

Payment：

PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other

Place of Origin：

China

Shipping：

Sea freight · Land freight

Supply Ability：

10000 piece per Month

Product Details

Rated Voltage

51.2V

Rated Capacity

100Ah

Rated Energy

5210Wh

Voltage Range

44.8-56V

Charge Voltage Range

56-57.6V

Cut-off Voltage

44.8V

Recommend Charge Current

50A

Max Charge Current

100A

Max Discharge Current

100A

Communication Port

RS485、CAN

Display

LED+LCD

Terminal

Plug-in

Cycle Life

＞6000 (0.5C@ 25℃，80% DOD)

Compatible inverter

Growatt, Goodwe, Sol-Ark, SRNE, DEYE

Certificate

CE,FCC,RoHs,MSDS,UN38.3


Products Description

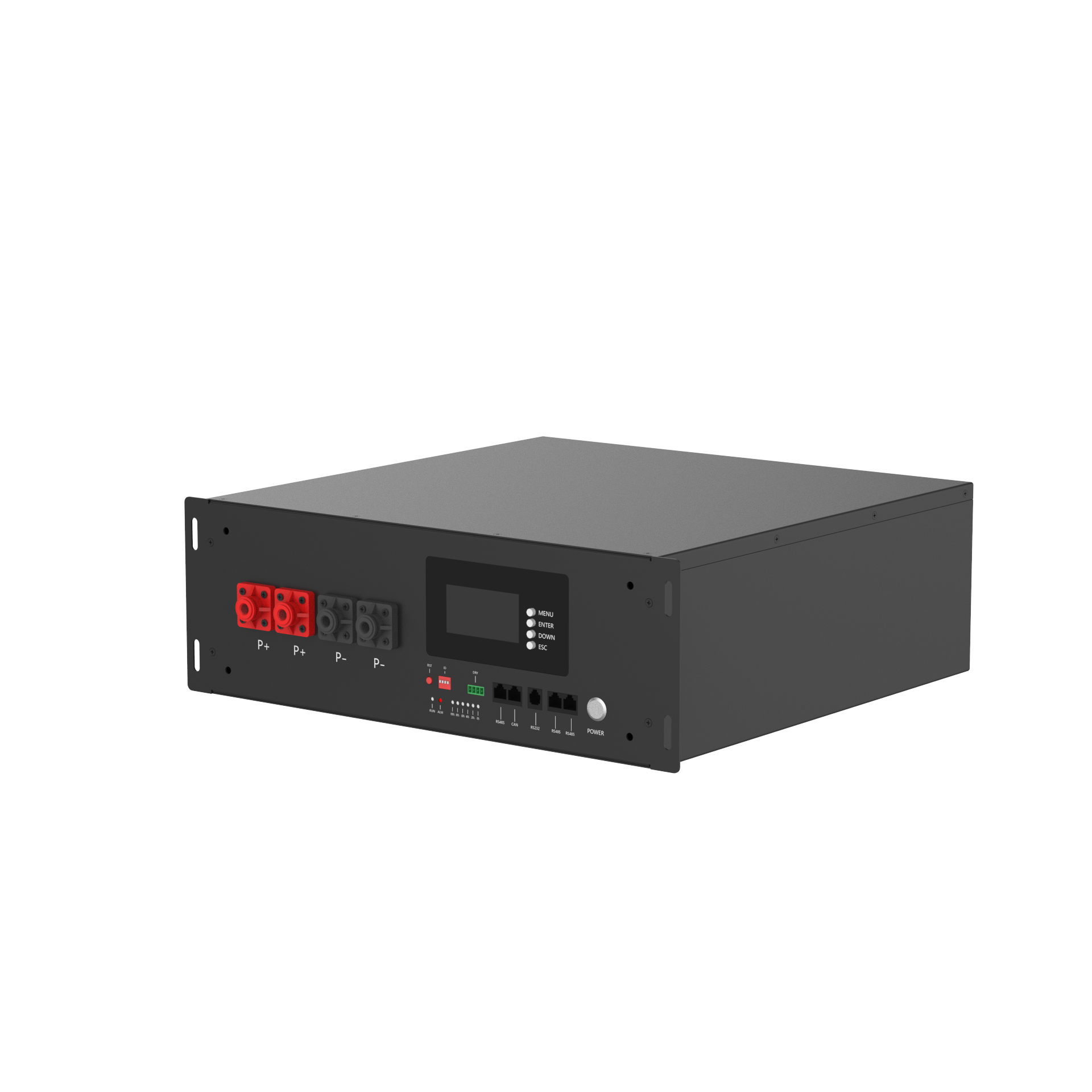

51.2V 100Ah energy battery
Key features

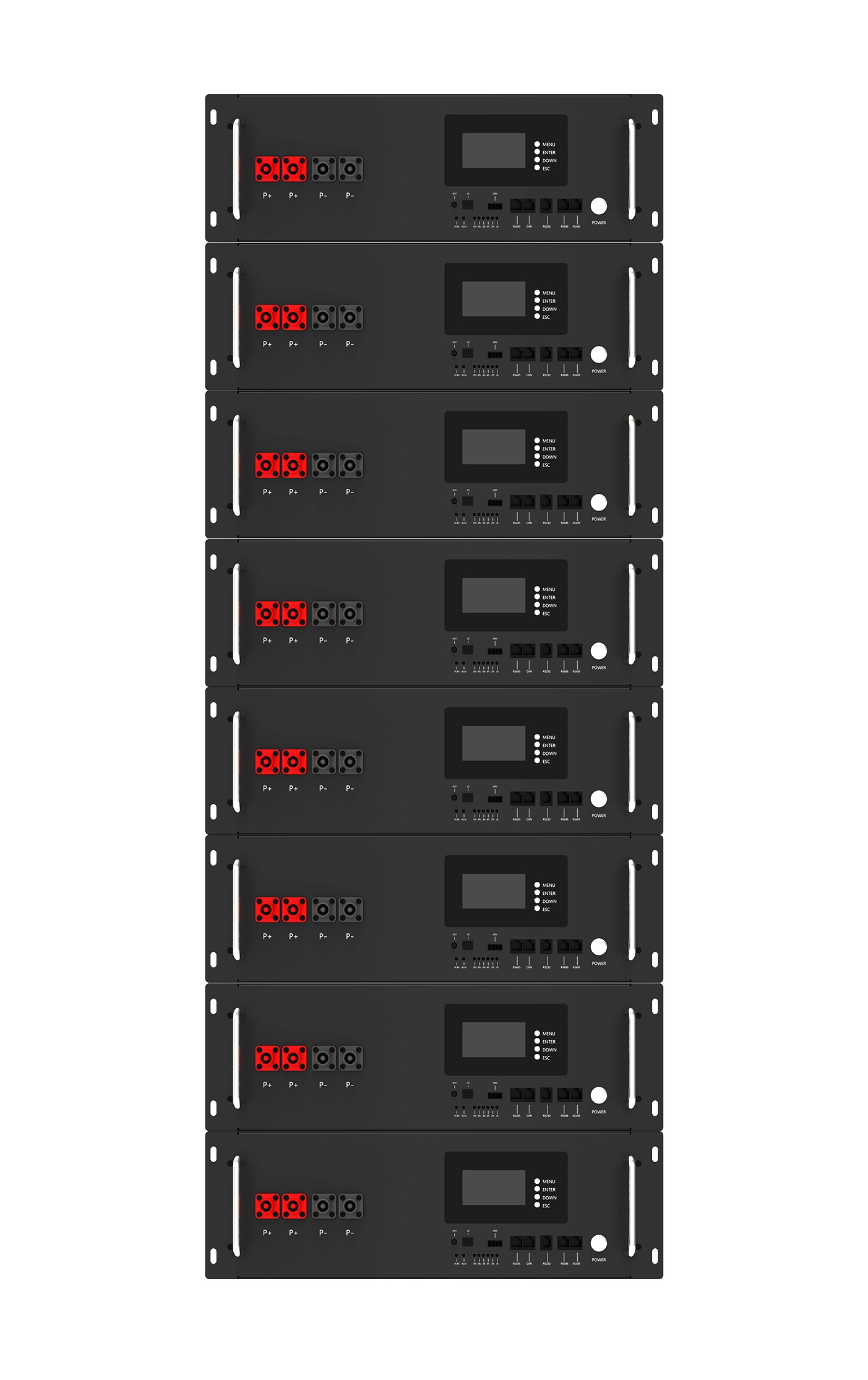

♦ Scalable to 200kWh
♦ Long Cycle Life, >6000 Cycles (80% DOD)
♦ Modular Design, Easy Installation
♦ Maintenance free, Easy Replacement
♦ Self Developed BMS, 10 Years Tested. Accurate & Stable
♦ Compatible with mainstream ESS inverterss
♦ 10 Years Global Warranty
♦Compatible with mainstream inverters such as Growatt, Goodwe, DEYE, SRNE, Luxpower, Megarevo, etc.
Application：

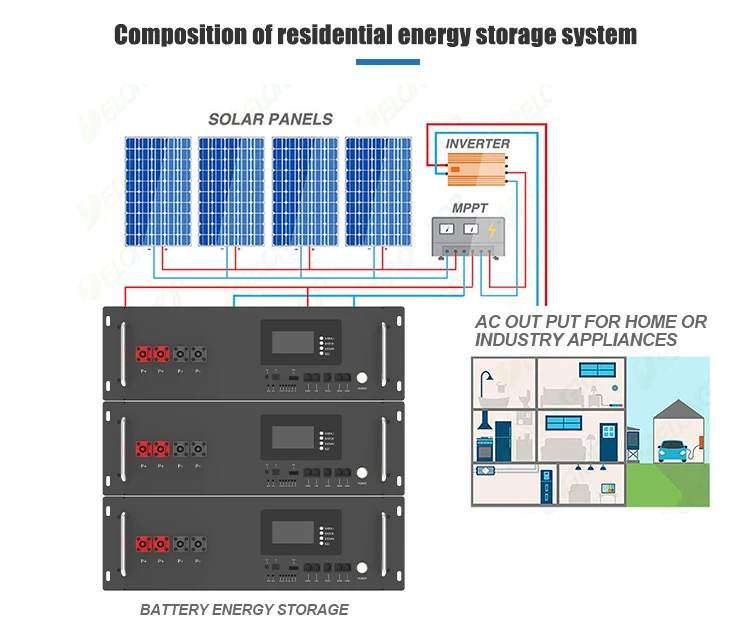

Hybrid Inverter Solar Energy Storage System
Product Description：
51.2V 100Ah works as a building block for home energy storage system with reliable and accurate battery management system.
Together with storage inverter, the system can realize the functions below:
Electricity Bills Reduction:
charge the battery during off-peak period and discharge the battery during peak period
Self-Consumption:
store excess energy generated by solar panels and use it whenever needed
Back-up Power Supply:
provide the power during grid blackouts.
Smart Energy Management:
Real-time monitoring and managing. You can know how much energy generated and consumed in real-time.

Product Features



Company Profile


Founded in 2011, Shenzhen Haisic Technology Co., Ltd. is a national high-tech enterprise dedicated to the research, development, and production of energy storage products such as LiFePO4 battery packs, commercial& industrial energy storage residential energy storage, portable power station/solar generator, solar inverter, lift truck battery, RVAlandscape bus/golf cart battery and other OEM/ODM battery in China.
Deeply engaged in this field for more than 12 years, Haisic Technology has accuimulated profound experience in R&D, innovation, quality control and management. Our products are used in home energy storage, industrial energy storage, commercial energy storage,power communication, medical electronics, security communications, transportation and logistics, new energy power, smart home and other related fields.

We have owned our own production base covering more than 14000m located in Dapeng district of Shenzhen with ISO9001, ISO14001, IS045001 and Amfori BSCI, and our products are with CE, FCC, TUV-UL2054, CQC,RoHs, PSE,MSDS, UN38.3 certificates. We've already provided safe, stable, environmentallyfriendly, high-quality products and professional OEM/ODM services to customers in more than 80 countries and regions.
FAQ
1.What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.

2. What is a lithium battery used for?
A: Lithium battery is used for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreationalvehicle power, golf cart, reliable and light-weight marine, solar power storage, solar house, small processing factory, surveillance or alarm systems in remote locations.

3.Are your batteries safe?
A: Our batteries are safe. All Zwayn batteries use the safest and most stable components, including a LiFePO4 cathode and abuilt-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken everyprecaution to mitigate these risks in all of our batteries.

4.How do I choose the correct lithium deep cycle battery for my application?
A: In most standard 12, 24, or 48 volt systems, the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate/
Pouch/Primary battery cell). The voltage of this type of battery is very similar to an AGM and will work great with readily
available system components for your RV, boat, off-grid power system, solar house(TV, refrigerator, washing machine, air
conditioner, water heater, microwave oven, induction cooker, dishwasher, printer, computer),Telecommunication Tower, hybrid &off-grid solar energy system applications.

5.Can it be series or parallel for use?
A: Yes sir, it can support max. 15 in parallel connection for use, Max 150kwh storage box.

6.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which iscompatible?
A:Yes sir, our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt, Solax,Solis, Sungrow, Sofar, Voltronic, Sorotec, Studer, etc.
