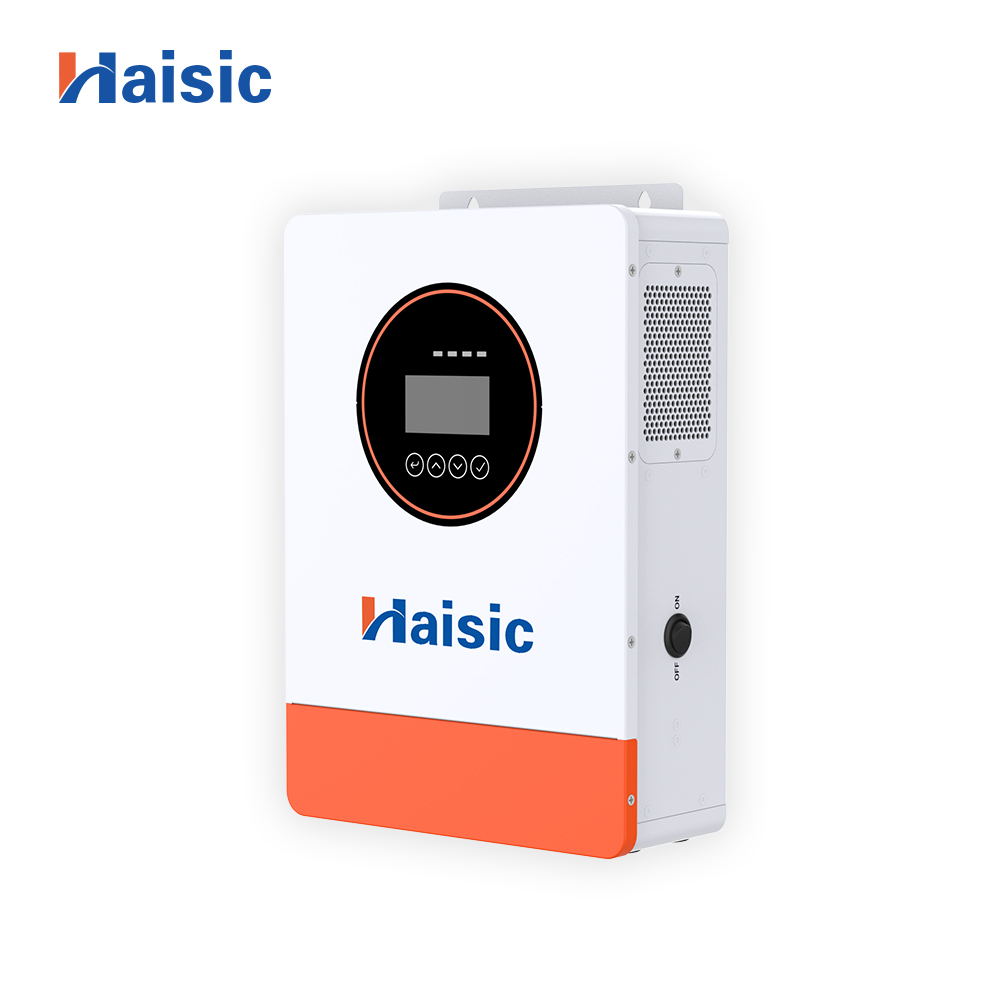

HS-PV1000-12 is a high-performance, unidirectional output off-grid solar inverter, specifically designed for household and small off-grid photovoltaic power generation systems. This model employs pure sine wave output technology, ensuring that it provides stable, clean and comparable to mains power quality alternating current power to the load. It is widely applicable in remote areas, outdoor operations, backup power sources, and daily solar self-sufficiency systems.
SINGLE PHASE OFF-GRID INVERTER
| Rated Voltage (V) | 12 |
| Floating Charge Voltage (VDC) | 13.8 |
| Overcharge Protection (VDC) | 15 |
| Battery Type | Lithium and Lead-acid |
| HMI | LCD |
| Interface | RS485 / USB |
| Monitoring | NA |
| Ingress Protection | IP20 |
| Operating Temperature | -10 ℃~ 50 ℃ |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15 ℃~ 60 ℃ |
| Net Weight (kg) | 3.6 |
| Dimensions (W*H*D) | 330*226*92mm (without bracket) |
| Max. Operating Altitude | 4000m (Derating above 1000m) |
