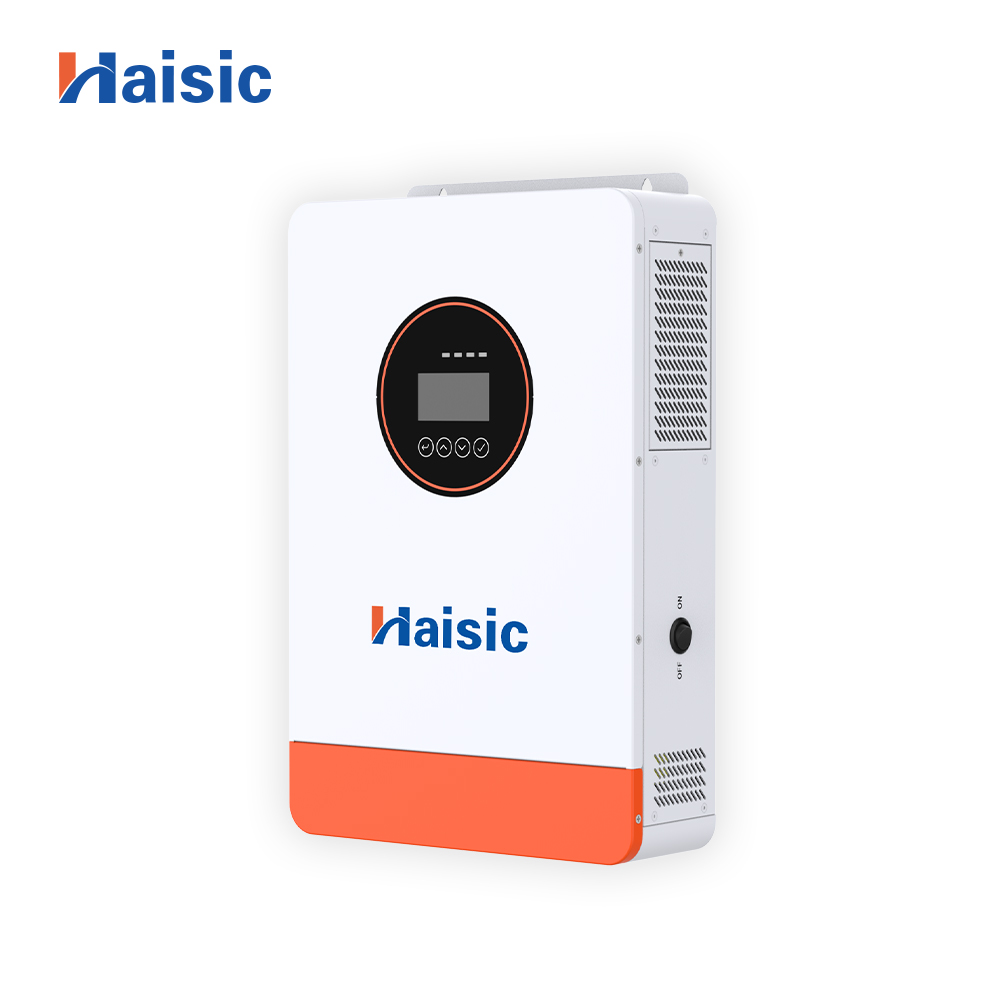

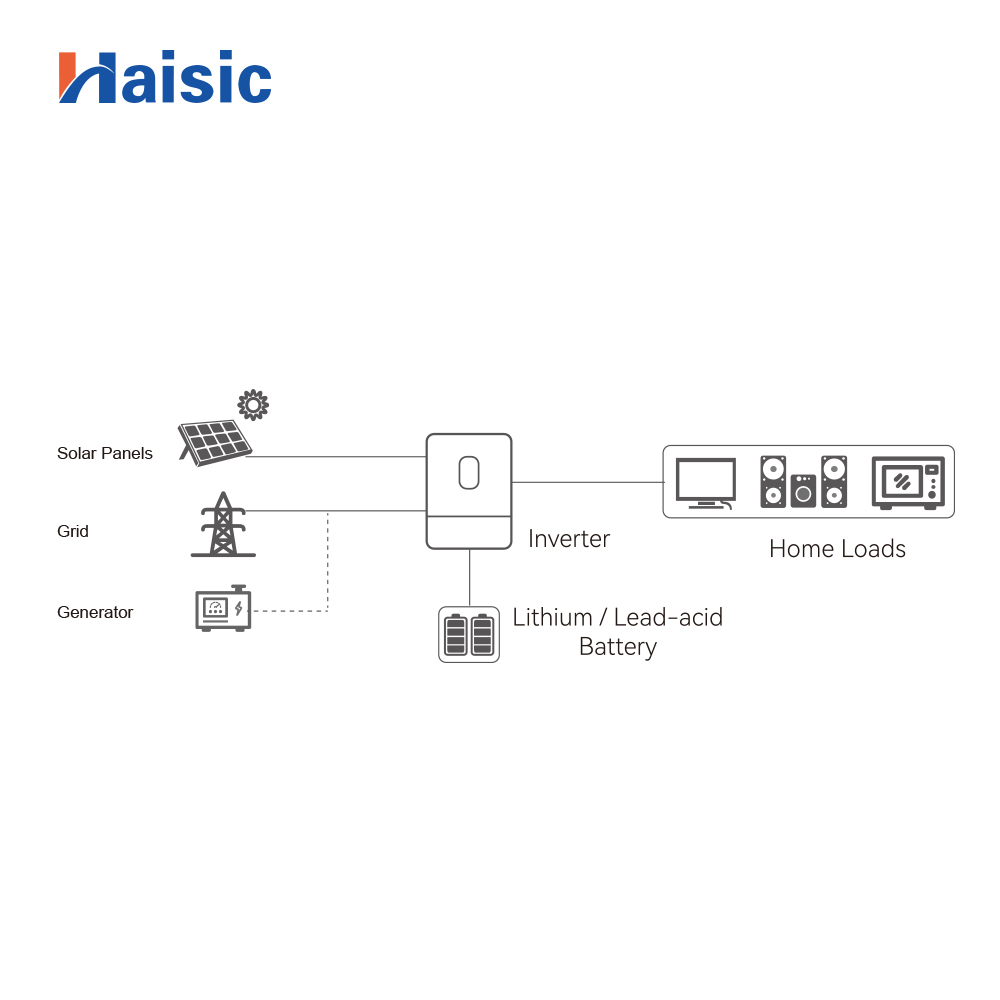

The HS-PV5000-24 is a high-performance, multi-functional single-phase off-grid inverter designed specifically for domestic backup power, power supply in remote areas, and small-scale commercial and industrial energy storage systems. This unit integrates pure sine wave inversion, an MPPT solar charge controller and automatic grid/battery switching, enabling the effective utilisation of photovoltaic energy to provide stable and reliable power for a wide range of loads.
SINGLE PHASE OFF-GRID INVERTER
Rated Voltage（V） | 24 |
| Floating Charge Voltage (VDC) | 27 |
| Overcharge Protection (VDC) | 30.5 |
| Battery Type | Lithium and Lead-acid |
| HMI | LCD |
| Monitoring | WiFi (Optional) |
| Ingress Protection | IP20 |
| Operating Temperature | -10 ℃~ 50 ℃ |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15 ℃~ 60 ℃ |
| Net Weight (kg) | 8 |
| Dimensions (W * H* D) | 490*306*115mm (without bracket) |
| Max. Operating Altitude | 4000m (Derating above 1000m) |
Founded in 2011, Shenzhen Haisic Technology Co., Ltd. is a national high-tech enterprise dedicated to the research, development, and production of energy storage products such as LiFePO4 battery packs, commercial& industrial energy storage residential energy storage, portable power station/solar generator, solar inverter, lift truck battery, RVAlandscape bus/golf cart battery and other OEM/ODM battery in China.
Deeply engaged in this field for more than 12 years, Haisic Technology has accuimulated profound experience in R&D, innovation, quality control and management. Our products are used in home energy storage, industrial energy storage, commercial energy storage,power communication, medical electronics, security communications, transportation and logistics, new energy power, smart home and other related fields.
We have owned our own production base covering more than 14000m located in Dapeng district of Shenzhen with ISO9001, ISO14001, IS045001 and Amfori BSCI, and our products are with CE, FCC, TUV-UL2054, CQC,RoHs, PSE,MSDS, UN38.3 certificates. We've already provided safe, stable, environmentallyfriendly, high-quality products and professional OEM/ODM services to customers in more than 80 countries and regions.
