HSB01-TPH-303/403/503-EU
View more

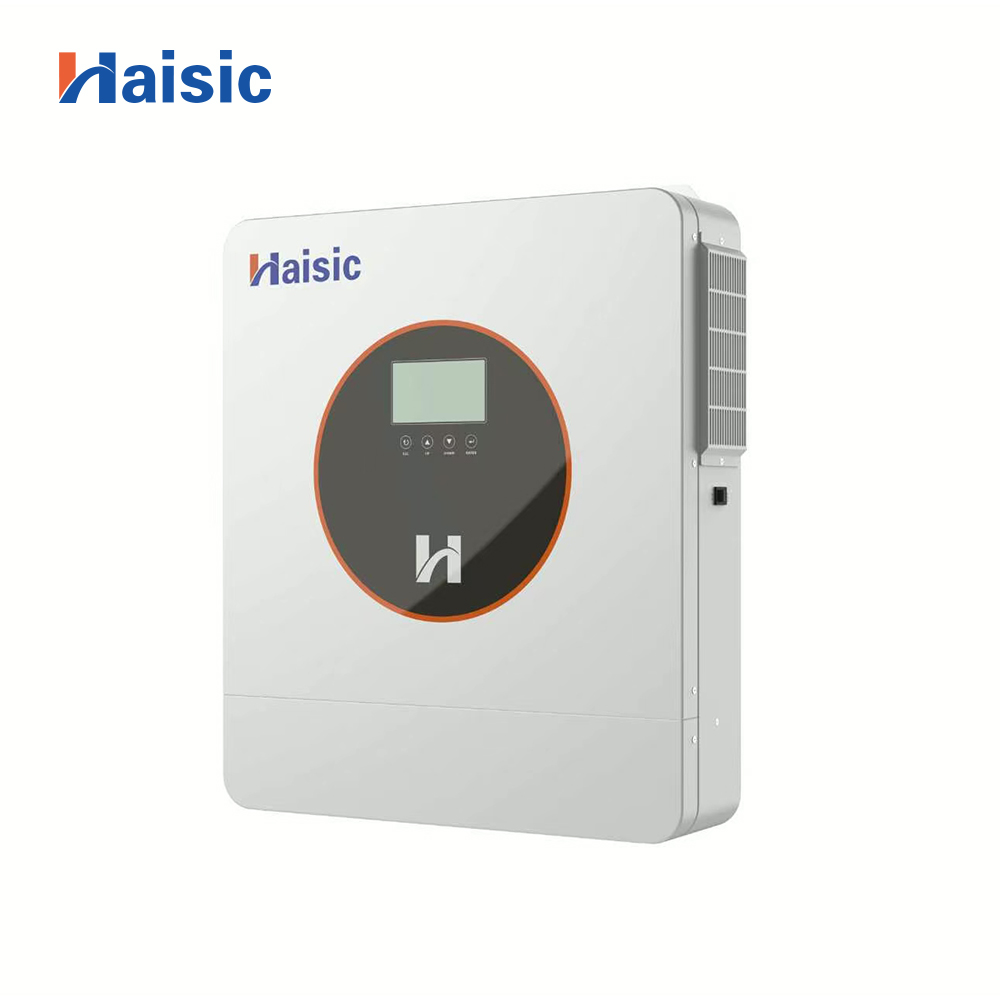

The HS-PV8500-48 is a high-performance single-phase hybrid inverter designed specifically for modern residential energy storage systems and small-scale commercial and industrial solar-plus-storage applications. This product integrates grid-tied inverter functionality, off-grid backup, MPPT solar charging and battery charge/discharge management into a single unit.
HYBRID INVERTER
Solar Charger TYPE | MPPT |
Max.PV Array Power | 5500W*2 |
Max. PV Array Open Circuit Voltage | 500VDC |
PV Array MPPT Voltage Range | 60VDC~500VDC |
Max. Solar Input Current | 18A*2 |
Max. Solar Charge Current | 140A |
Max. AC Charge Current | 120A |
Max. Charge Current | 140A |
Dimensions, D x W x H(mm) | 540*415*122 |
Net Weight (Kgs) | 14.5 |
Communication Interface | RS232/RS485/Dry-contact |
LCD | YES |
Operating Temperature Range | -10°C to 55°C |
Storage temperature | -15°C~60°C |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Ingress Protection | IP21 |
Founded in 2011, Shenzhen Haisic Technology Co., Ltd. is a national high-tech enterprise dedicated to the research, development, and production of energy storage products such as LiFePO4 battery packs, commercial& industrial energy storage residential energy storage, portable power station/solar generator, solar inverter, lift truck battery, RVAlandscape bus/golf cart battery and other OEM/ODM battery in China.
Deeply engaged in this field for more than 12 years, Haisic Technology has accuimulated profound experience in R&D, innovation, quality control and management. Our products are used in home energy storage, industrial energy storage, commercial energy storage,power communication, medical electronics, security communications, transportation and logistics, new energy power, smart home and other related fields.
We have owned our own production base covering more than 14000m located in Dapeng district of Shenzhen with ISO9001, ISO14001, IS045001 and Amfori BSCI, and our products are with CE, FCC, TUV-UL2054, CQC,RoHs, PSE,MSDS, UN38.3 certificates. We've already provided safe, stable, environmentallyfriendly, high-quality products and professional OEM/ODM services to customers in more than 80 countries and regions.
